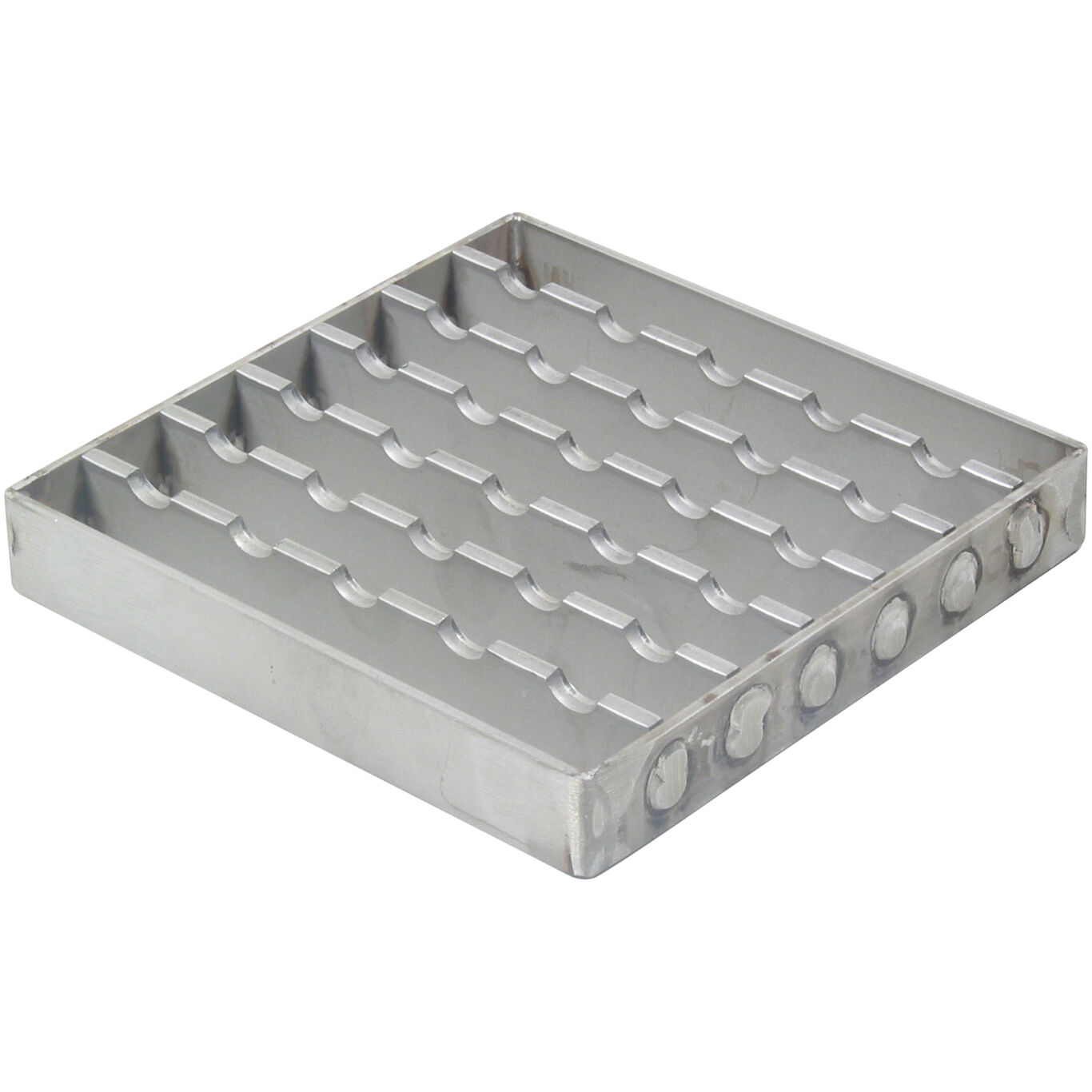

LADDER GRATING SQUARE - (790.168.001.25 S)
×
![]()
Part Of the Series: Grating-Drain-200
Type no.: 790.168.001.25 S
EAN no.: 5705499104639
LVI no.: 3304083
Size: 200x200
LADDER GRATING SQUARE
-With screw lock
-Grating: 168x168mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Load Class EN1253 | R50 |
| Load Class EN1253 (kg) | R50 (5000) |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 25 |
| Non-slip | R11 |
| Number of Screws | 1 |
| Shape | Square |
| Size (mm) | 200x200 |
| Weight (kg) | 1,72 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
