MESH GRATING CIRCLE - (790.173.000.22 S)
×
![]()
Part Of the Series: Grating-Drain-205-Vinyl-232
Type no.: 790.173.000.22 S
EAN no.: 5705499113617
VVS no.: 153559125
LVI no.: 3304057
Size: Ø195

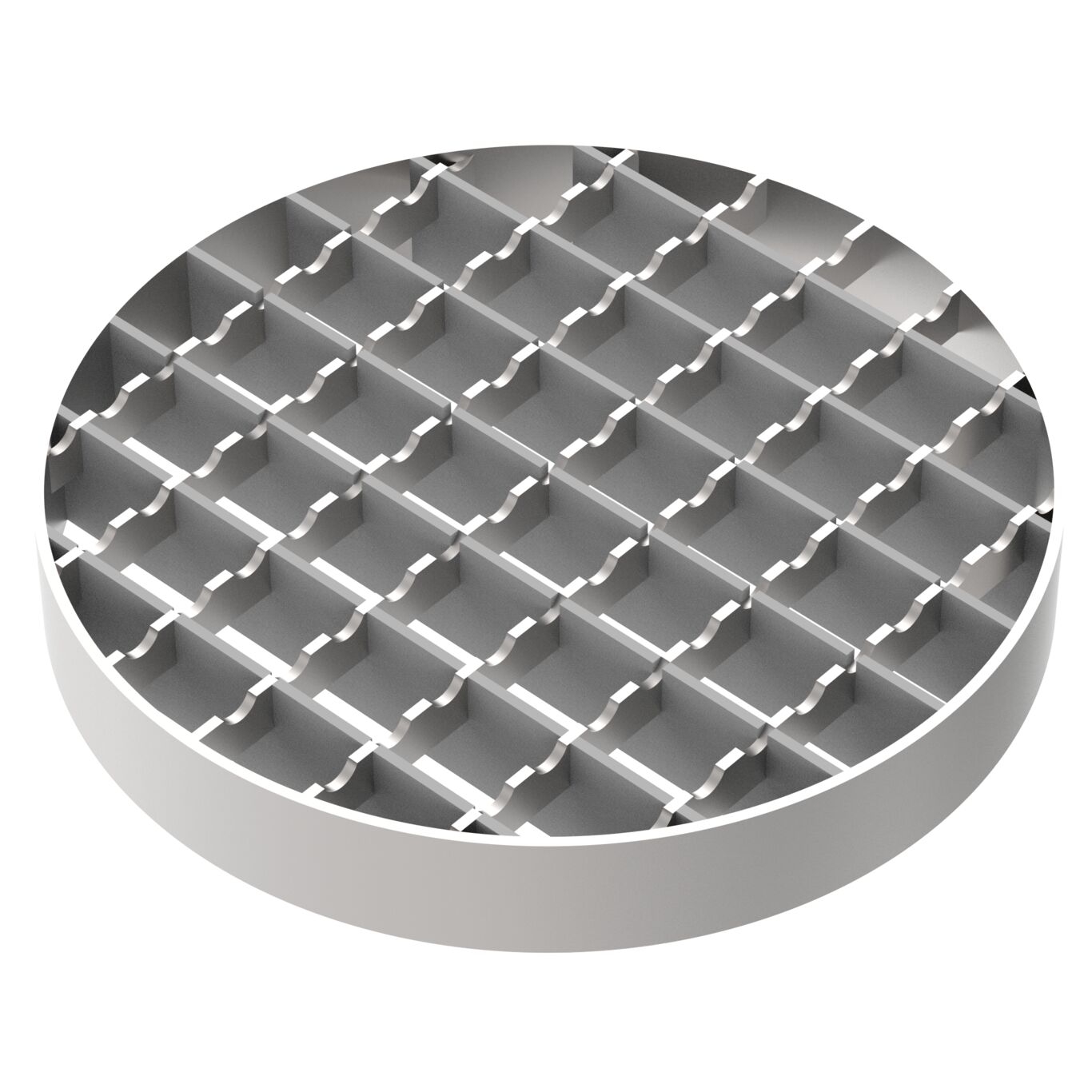

MESH GRATING CIRCLE
-Grating: Ø173mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Load Class EN1253 | R50 |
| Load Class EN1253 (kg) | R50 (3500) |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 25 |
| Non-slip | R12 |
| Number of Screws | 0 |
| Shape | Round |
| Size (mm) | Ø195 |
| Weight (kg) | 0,53 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
