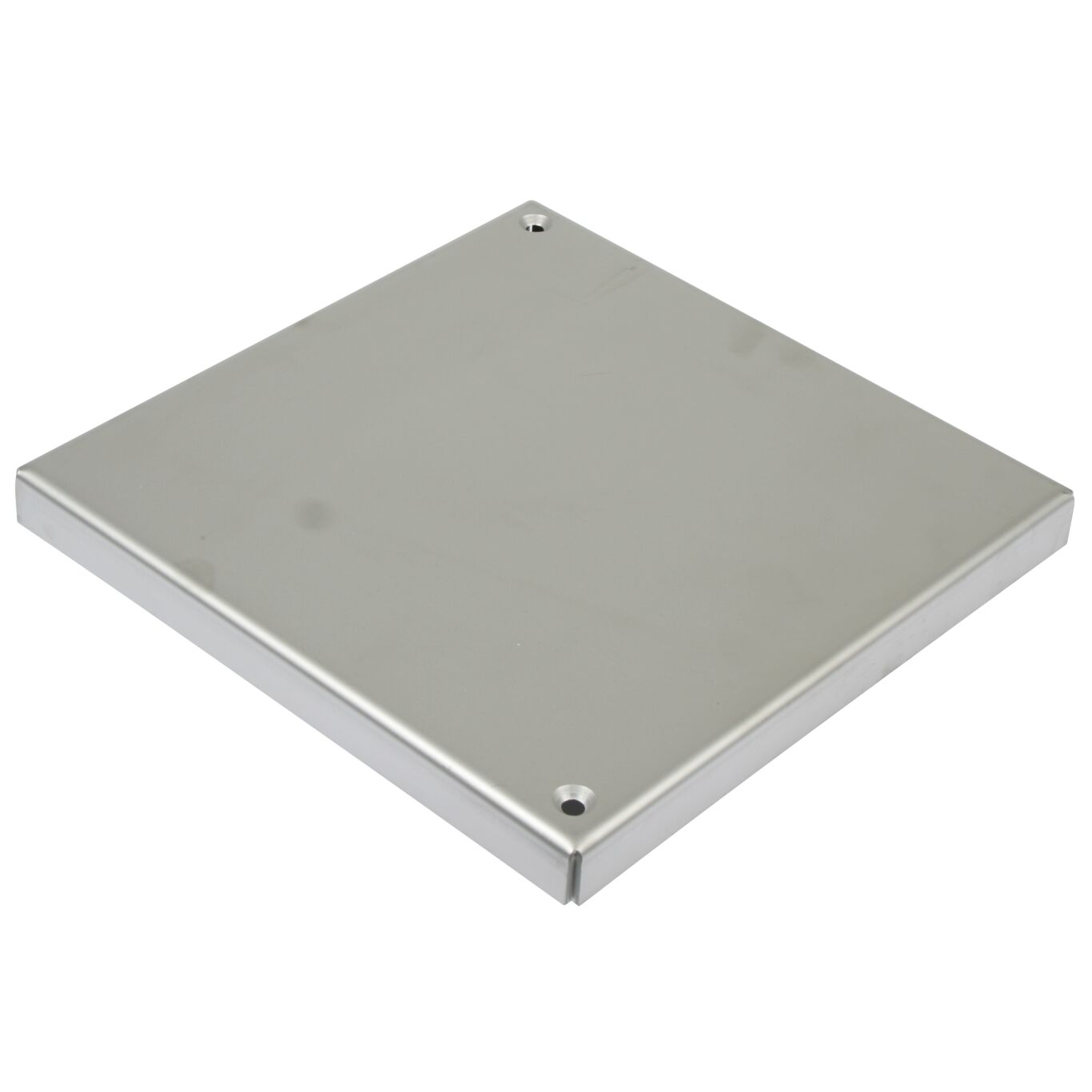

BLANK PLATE SQUARE - (790.268.001.00)
×
![]()
Part Of the Series: Grating-Drain-300
Type no.: 790.268.001.00
EAN no.: 5705499121209
Size: 300x300
BLANK PLATE SQUARE
-With screw lock
-Grating: 268x268mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Load Class EN1253 | L15 |
| Load Class EN1253 (kg) | L15 (1250) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 24 |
| Number of Screws | 2 |
| Shape | Square |
| Size (mm) | 300x300 |
| Weight (kg) | 2,19 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
