REMOVABLE TWO-PART WATER TRAP - (562.102.000 S)
×
![]()
Part Of the Series: Water trap-160
Type no.: 562.102.000 S
EAN no.: 5705499137903
VVS no.: 153019550
RSK no.: 7124002
NRF no.: 3397054
LVI no.: 3305612

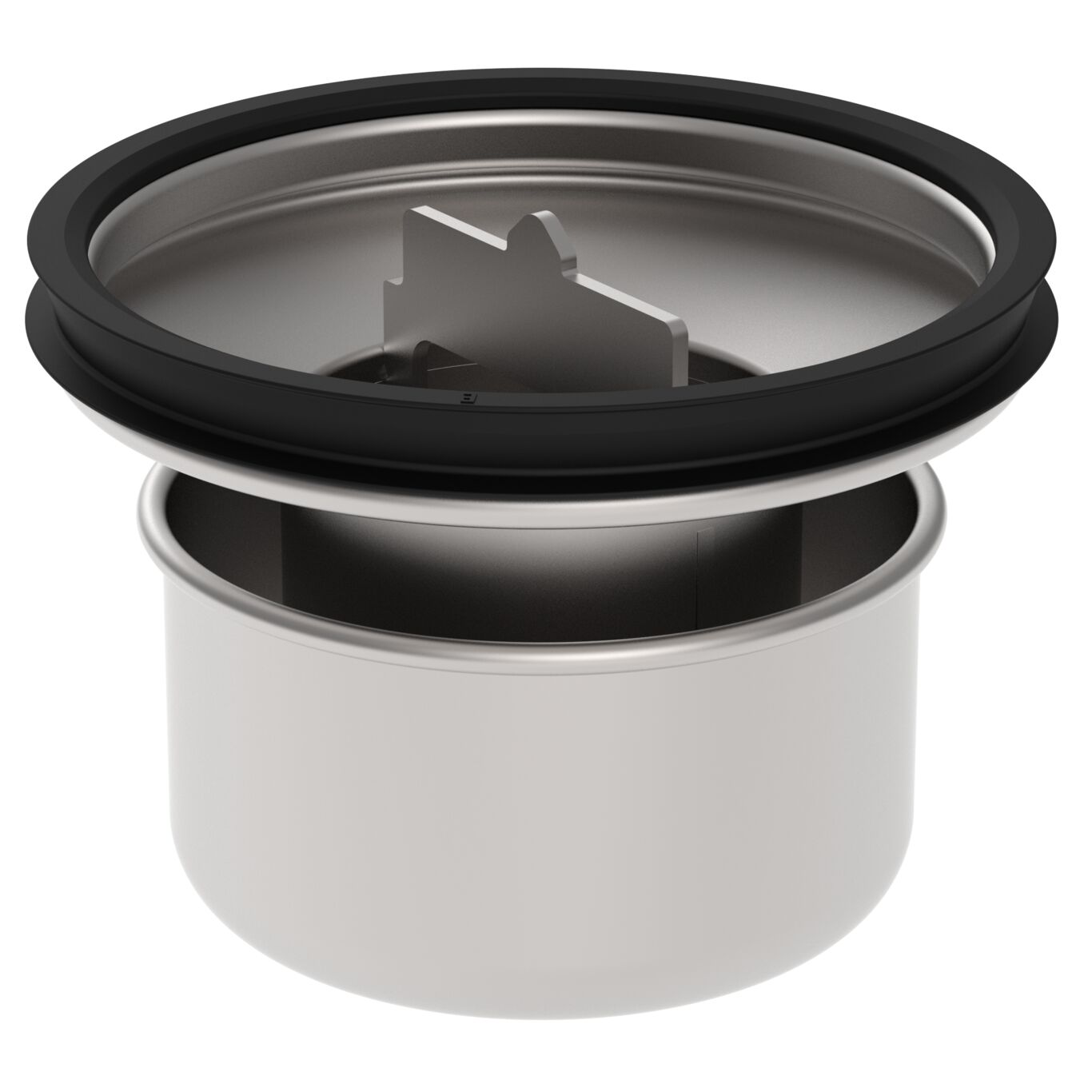

REMOVABLE TWO-PART WATER TRAP
-Water seal height = 50mm
-Stainless steel: AISI316L/EN1.4404

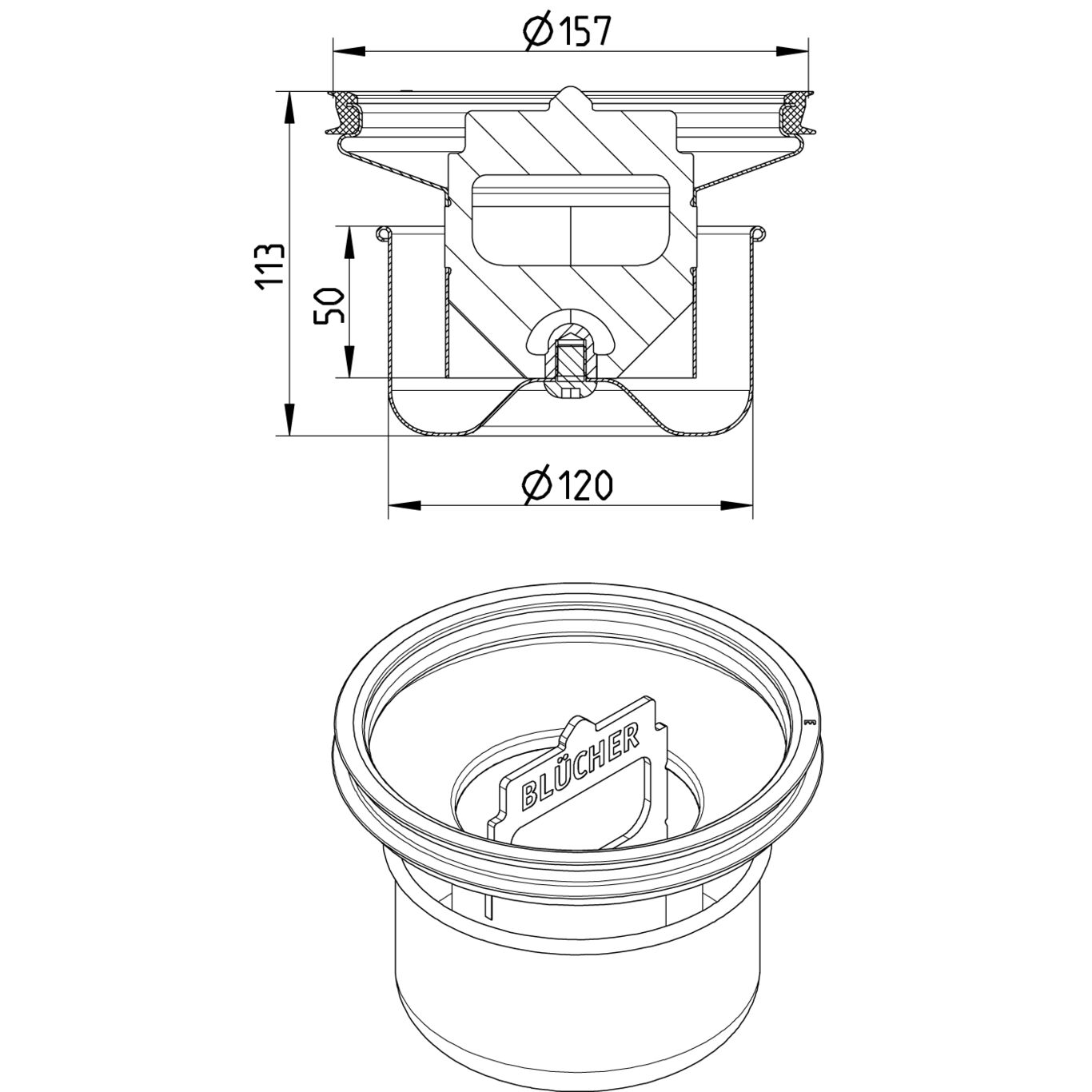

| Product Specification | |
|---|---|
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Max Flow (l/s) | 6.0 |
| Minimum Flow (l/s) | 3.4 |
| Minimum Height (mm) | 113 |
| Outlet Diameter (mm) | 157 |
| Water Seal Height (mm) | 50 |
| Weight (kg) | 0,80 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
