INDUSTRIAL DRAIN - (763.502.110)
Part Of the Series: Drain-No membrane-205
Type no.: 763.502.110
EAN no.: 5705499110081
VVS no.: 153050202
RSK no.: 7123995
NRF no.: 3396095
LVI no.: 3303623

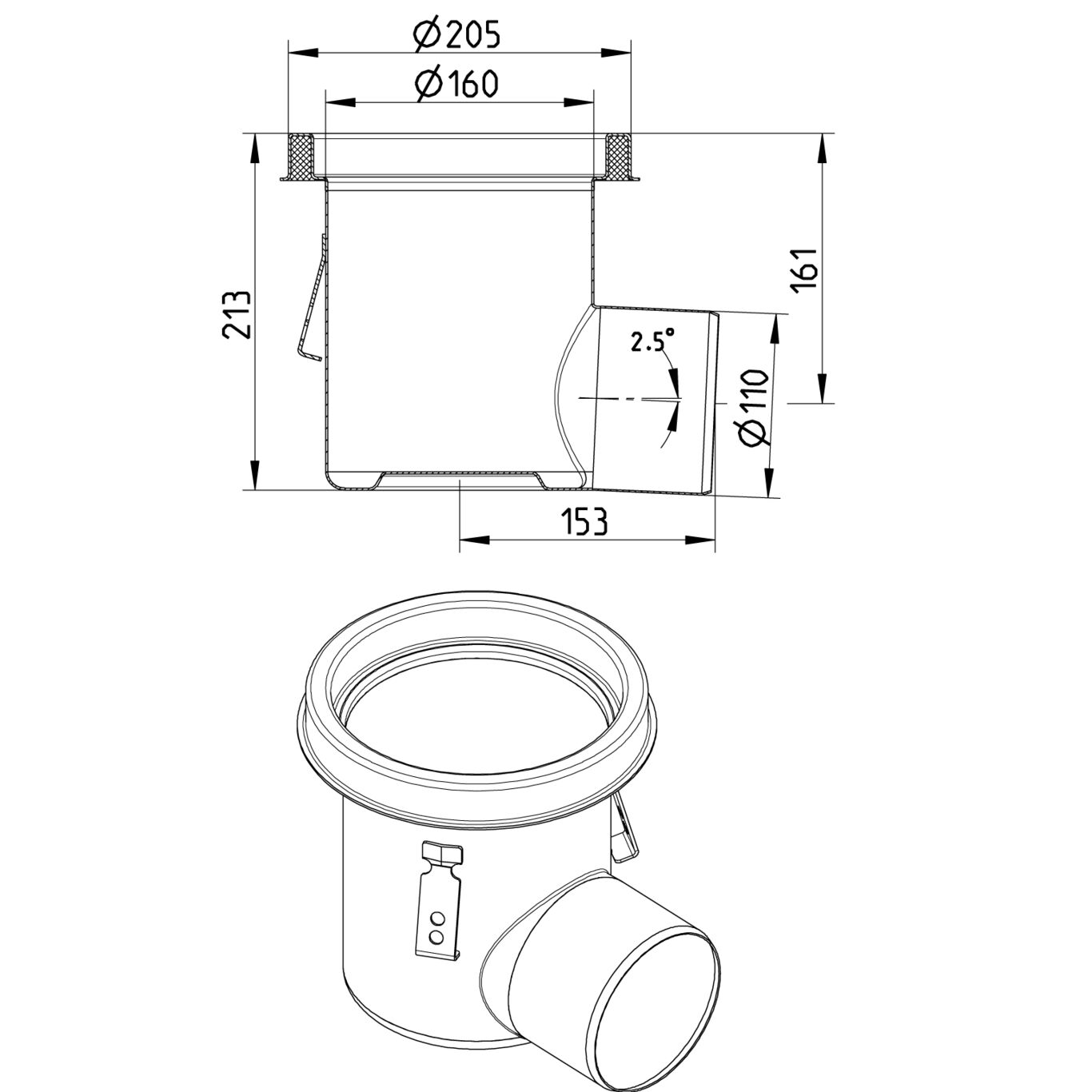

Size: Ø205

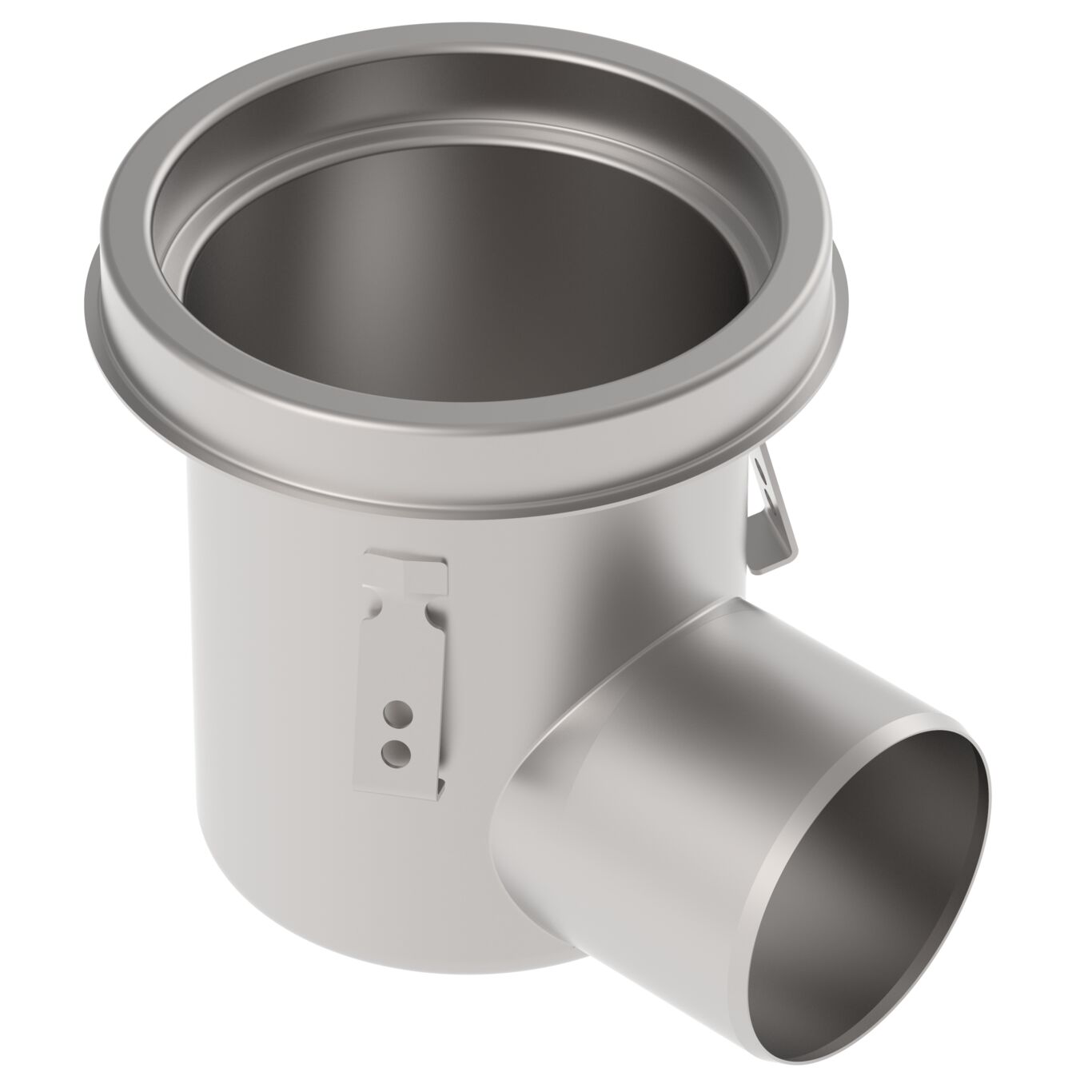

INDUSTRIAL DRAIN
-Floor: resin
-Frame: Ø205mm
-Outlet: Ø110mm, horizontal
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Adjustable | No |
Floor | Resin |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Membrane Type | No Membrane |
Minimum Height (mm) | 213 |
Number of Inlets | 0 |
Number of Screw Holes | 0 |
Outlet Diameter (mm) | 110 |
Outlet Direction | Horizontal |
Shape | Round |
Size (mm) | Ø205 |
Weight (kg) | 2,48 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
