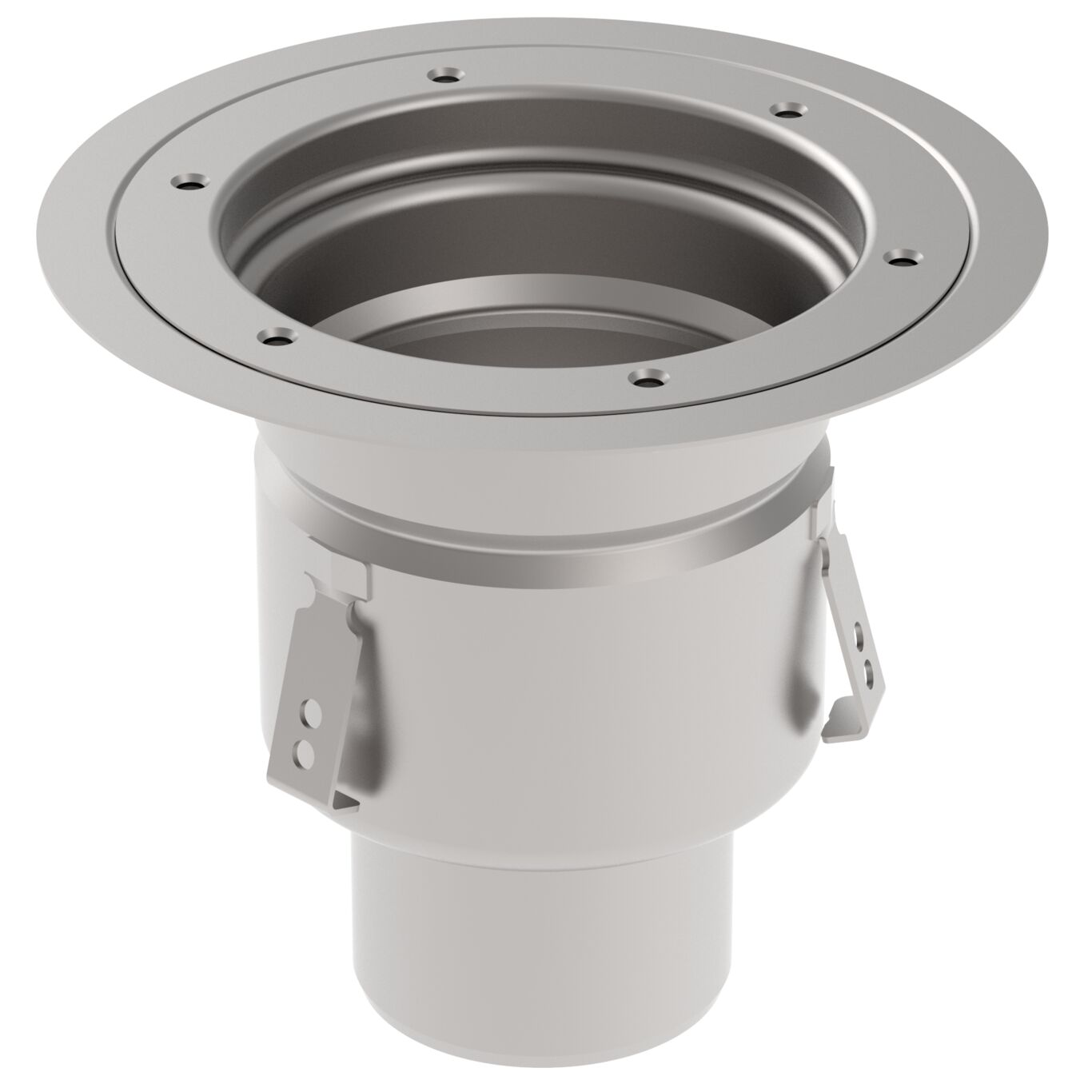

INDUSTRIAL DRAIN, LOW - (766.602.110)
×
![]()
Part Of the Series: Drain-Vinyl-232
Type no.: 766.602.110
EAN no.: 5705499110562
VVS no.: 153050502
NRF no.: 3396063
LVI no.: 3303593

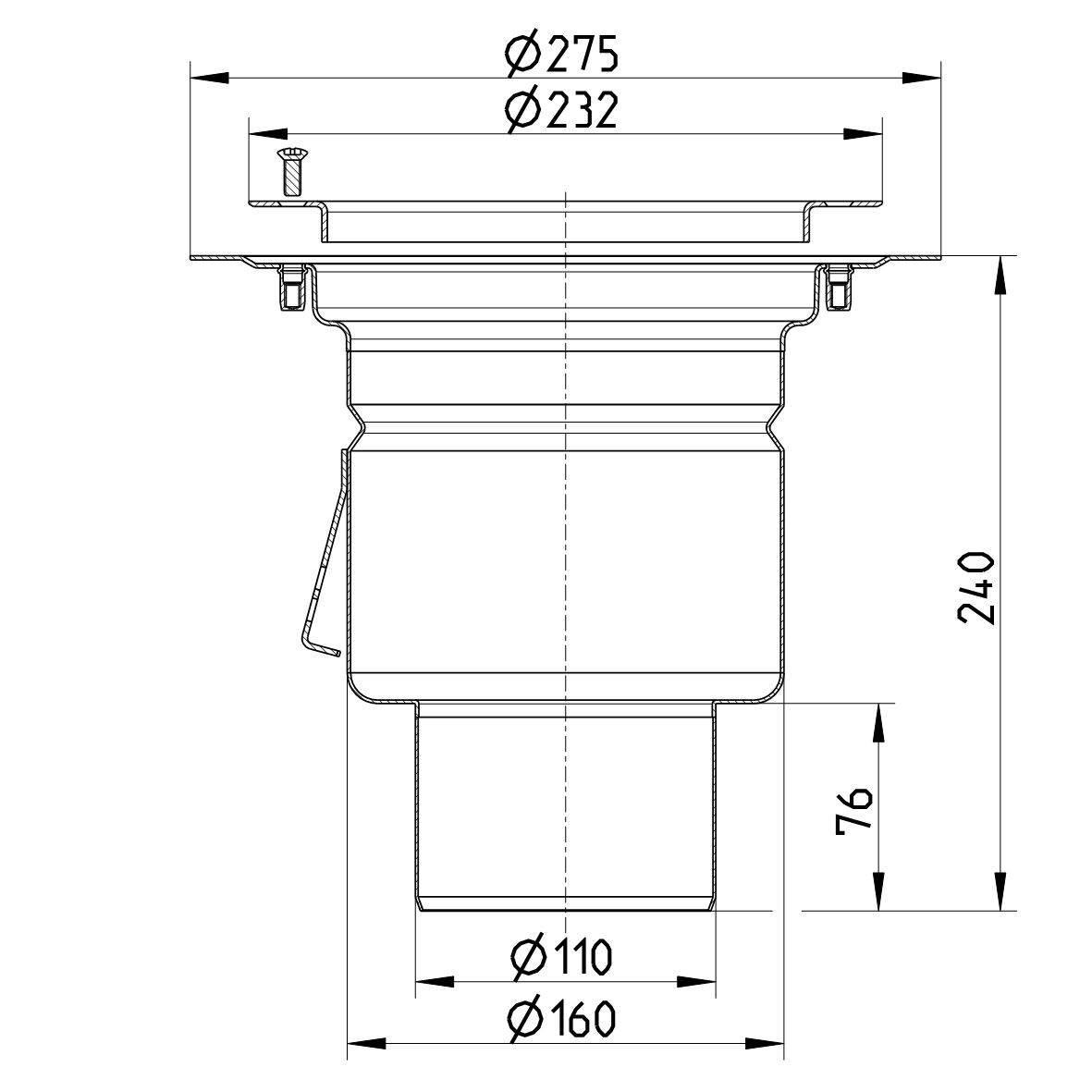

Size: Ø232
INDUSTRIAL DRAIN, LOW
-Floor: vinyl
-Frame: Ø232mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Adjustable | No |
| Floor | Vinyl |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 240 |
| Number of Inlets | 0 |
| Number of Screw Holes | 0 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Shape | Round |
| Size (mm) | Ø232 |
| Weight (kg) | 2,04 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
