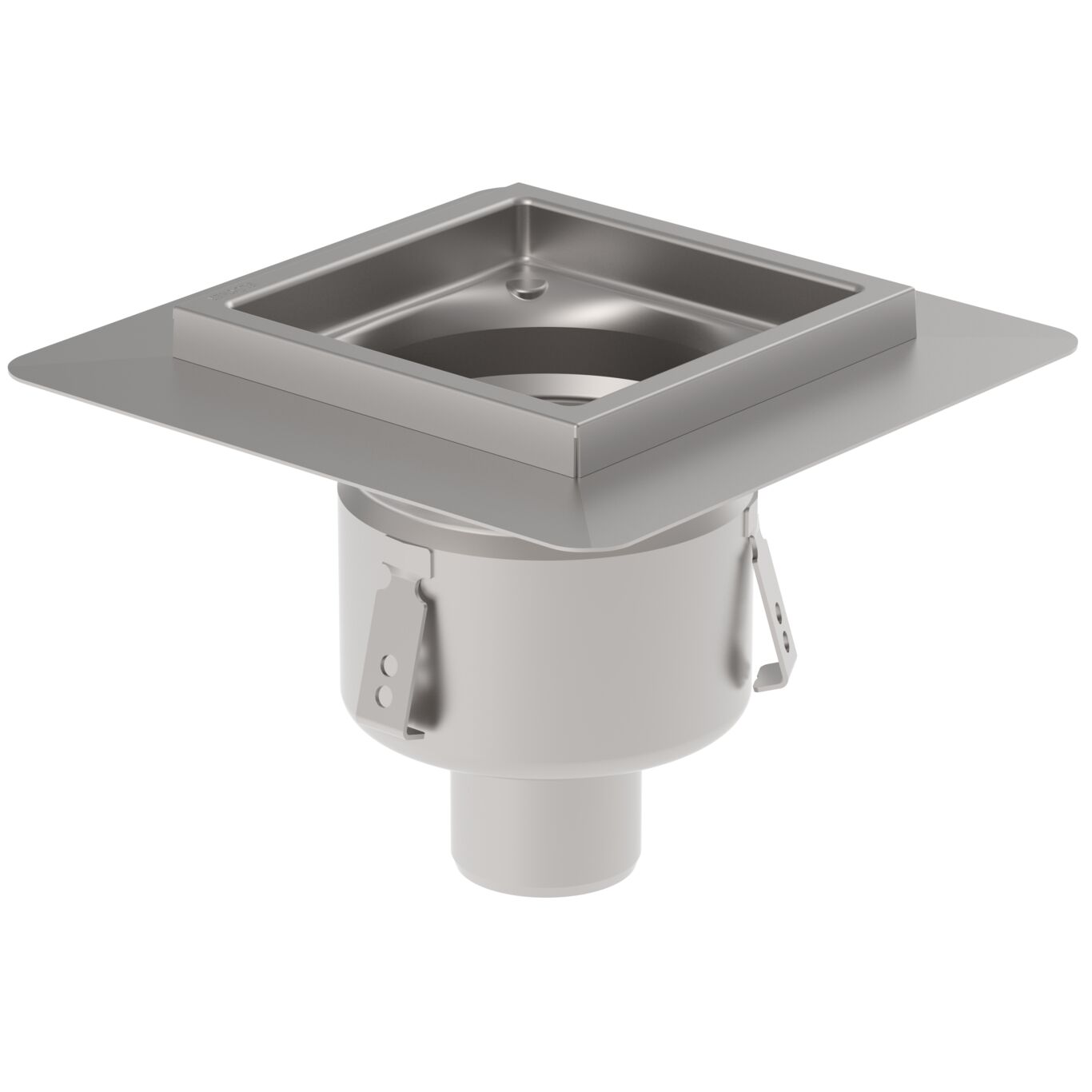

INDUSTRIAL DRAIN, LOW - (767.402.075)
×
![]()
Part Of the Series: Drain-Liquid membrane-200
Type no.: 767.402.075
EAN no.: 5705499110647
NRF no.: 3396378
LVI no.: 3303701
Size: 200x200
INDUSTRIAL DRAIN, LOW
-Floor: concrete and tiled
-Liquid membrane, frame: 200x200mm
-Outlet: Ø75mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Adjustable | No |
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Liquid Membrane |
| Number of Inlets | 0 |
| Number of Screw Holes | 0 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (mm) | 200x200 |
| Weight (kg) | 5,05 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
