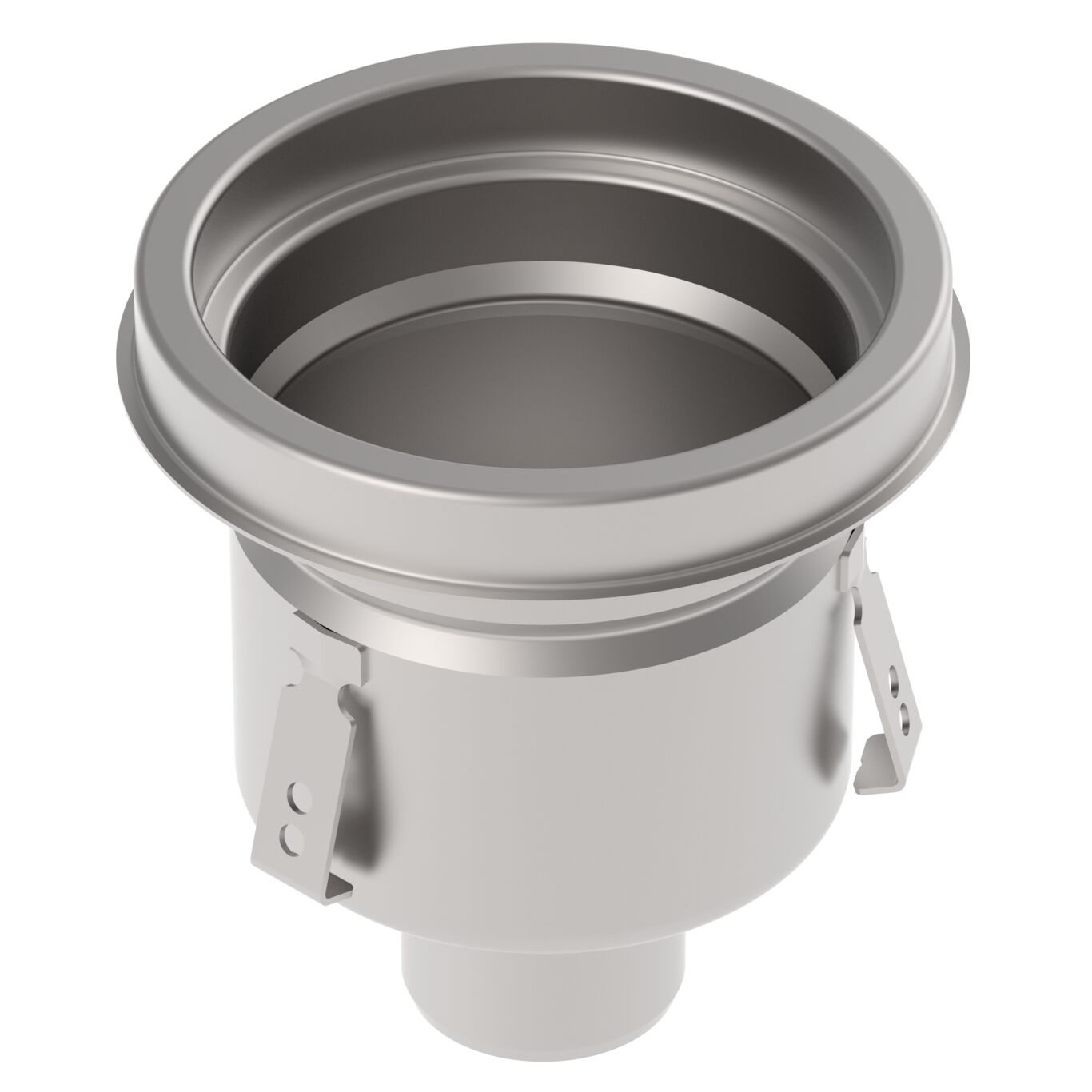

INDUSTRIAL DRAIN, LOW - (766.502.075 S)
×
![]()
Part Of the Series: Drain-No membrane-205
Type no.: 766.502.075 S
EAN no.: 5705499110456
VVS no.: 153003113
LVI no.: 3303582

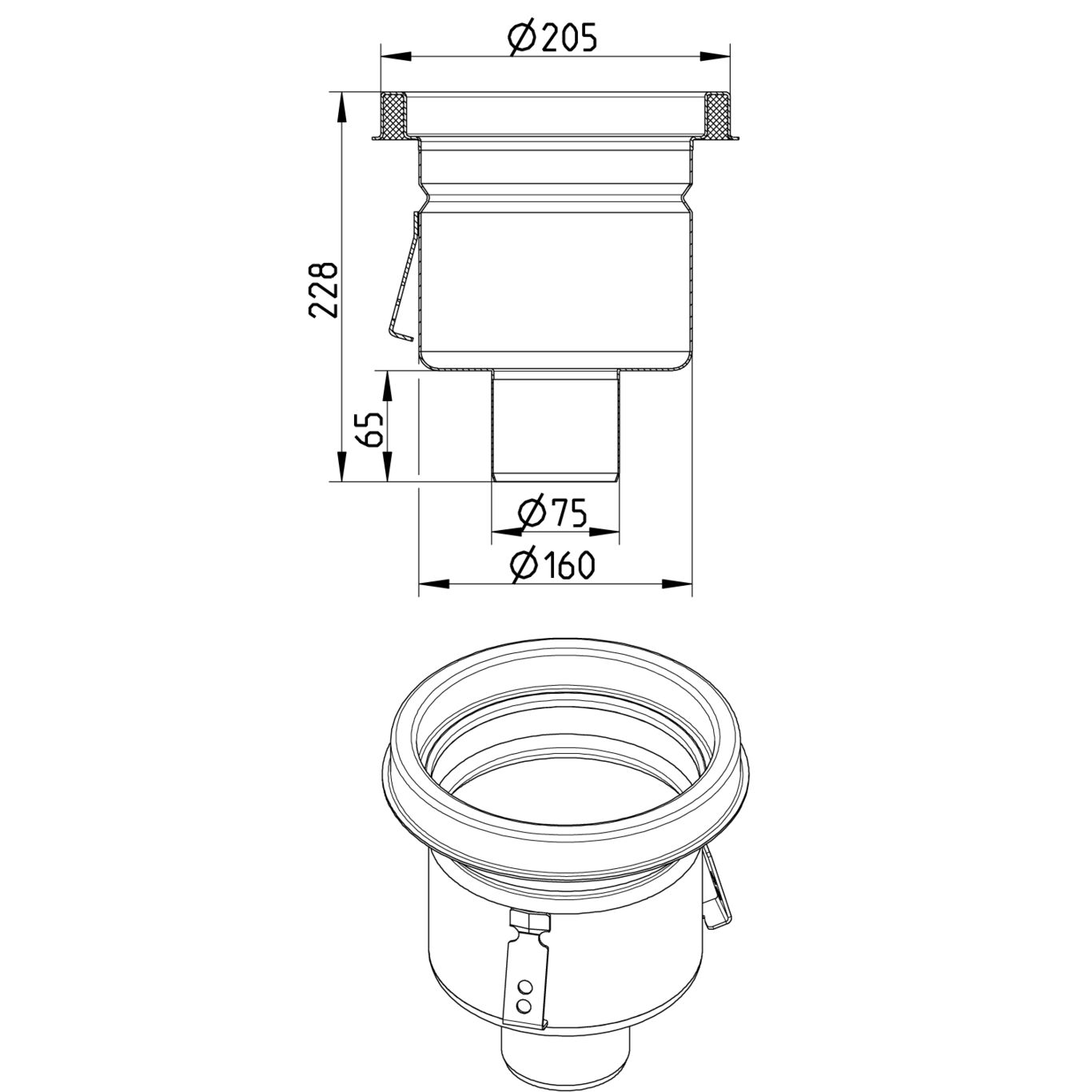

Size: Ø205
INDUSTRIAL DRAIN, LOW
-Floor: resin
-Frame: Ø205mm
-Outlet: Ø75mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Adjustable | No |
| Floor | Resin |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 228 |
| Number of Inlets | 0 |
| Number of Screw Holes | 0 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Vertical |
| Shape | Round |
| Size (mm) | Ø205 |
| Weight (kg) | 2,20 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
